Multimeter Digital Storage 2-in-1 Digital Oscilloscope OSC 6000 Counts True RMS Multimeter

<p>One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.</p><p>240*320 high definition color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.</p><p>Multimeter measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.</p><p>Storage: mass storage, 100 data/10 waveforms.</p><p>Triple safety: double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep warning.</p>

• Oscilloscope, Multimeters, Electrical Instruments, Measurement & Analysis Instruments
• Features:
• - Oscilloscope multimeter 2 in 1, improve your work efficiency.
• - Same screen display: historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.
• - Buttons and dial: silicone button, sensitive pressing function dial, accurate gear.
• - Back bracket: the back bracket is tilted at 60° for easy viewing.
• Specifications:
• Material: ABS
• Color: black
• Display: 320*240 LCM
• Display area: about 2.4 inches
• Backlit: white
• Input resistance: 10M
• Battery: 3 * AA battery (not included)
• Power consumption: about 80mA
• Use time: low light about 5 hours
• Storage: 100 data/10 waveforms
• Use environment: 0~40, <75%RH
• Storage environment: -10~60, <90%RH
• Bandwidth: ACV/1MHz ACA/5KHz
• Max. real-time sampling rate: 2.5Msps
• Multimeter measurement: automatic range + manual range

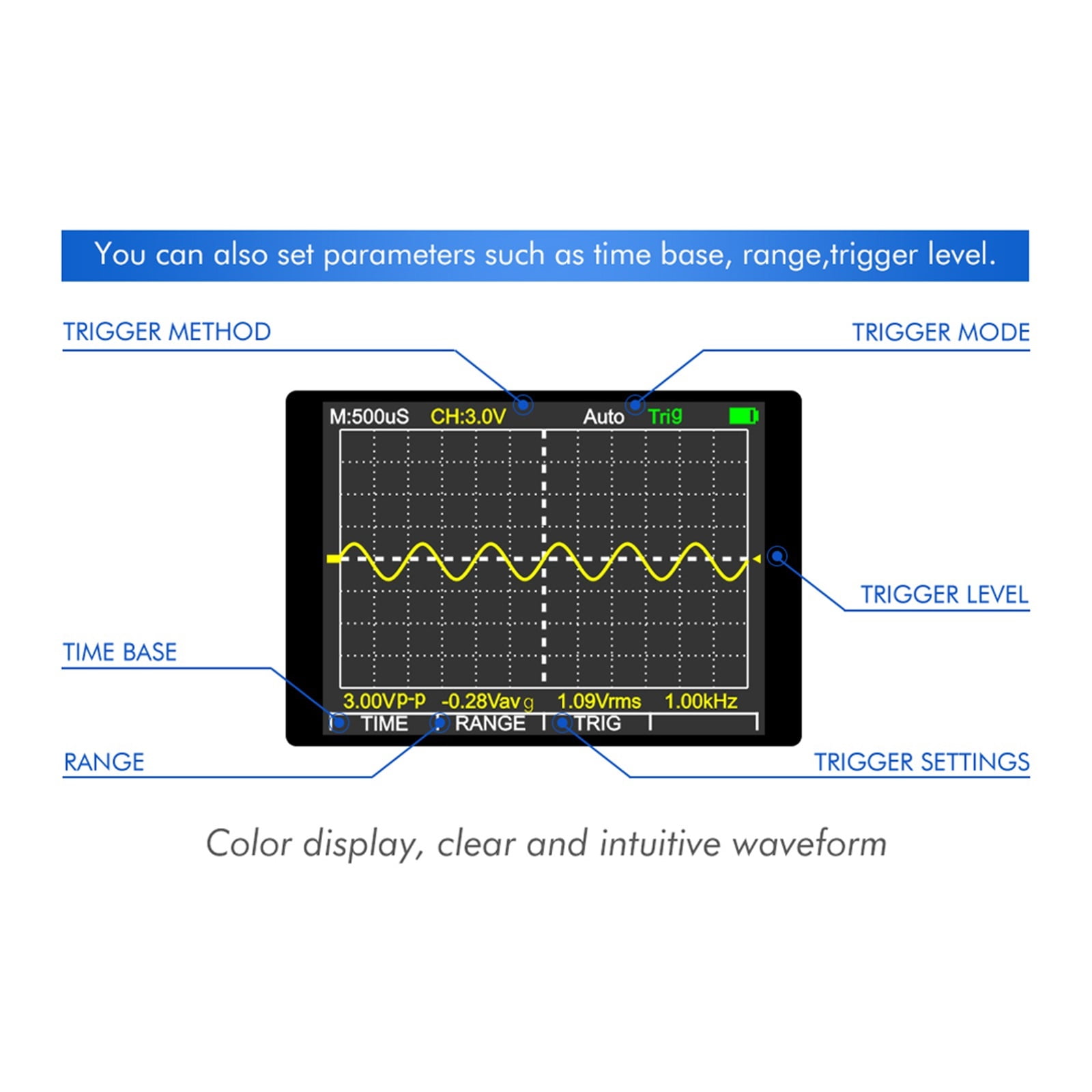

• Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude
• Measurement mode: normal, automatic
• Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in
• Item weight: 195g / 6.9ounce
• Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in
• Package weight: 370g / 13.1ounce
• Multimeter specification:
• DC voltage:
• Range: 400mV/4V/40V/400V/1000V
• Uncertainty: 0.75% rdg+10dgt
• AC voltage:
• Range: 400mV/4V/40V/400V/750V
• Uncertainty: 1.0% rdg+10dgt
• DC current:
• Range: 40mA/400mA/4A/10A
• Uncertainty: 1.2% rdg+10dgt
• AC current:
• Range: 40mA/400mA/4A/10A
• Uncertainty: 1.5% rdg+10dgt
• Resistance:
• Range: 400.0~40.00M
• Uncertainty: 1.0% rdg+5dgt
• Capacitance:
• Range: 0.1nF~100, 10.00mF
• Uncertainty: 2.0% rdg+10dgt
• Frequency:
• Range: 5Hz~10MHz
• Uncertainty: 1.0% rdg+5dgt
• Duty cycle:
• Range: 0.1%~99.9%
• Uncertainty: 1.0% rdg+5dgt
• Diode test: voltage is about 5V, test current is about 1.5mA
• Continuity test: judgment resistance about:<50 beep
• Fuse specifications: 500mA/250V, 10A/250V
• Packing List:
• 1 * Graphical Multimeter
• 1 * Pair of Test Pens
• 1 * Protective Bag
• 1 * User Manual
